Pneumatic Cylindrical Battery Sealing Machine For Lab Cell Crimping

Name: Pneumatic Cylindrical Battery Sealing Machine For Lab Cell Crimping
Brand: ACEY
Price: 2980 USD

Quality Pneumatic Cylindrical Battery Sealing Machine For Lab Cell Crimping for sale

Brand Name : ACEY

Model Number : ACEY-ACS-1

MOQ : 1 Set

Price : USD 2980~3105/Set

Payment Terms : T/T,PayPal,L/C,Western Union,MoneyGram

Supply Ability : 200 Sets/Month

Delivery Time : 7~35 Days

Power supply : 220V/50Hz

Air consumption : about 480ml

Sealing stroke : 30mm

sealing mold : standard 18650 series

Dimensions : About L465mm*W355mm*H345mm

Weight : About 27Kg

Place of Origin : China

Warranty : 1 Year Warranty With Lifetime Support

Certification : CE

Packaging Details : Plywood Case

After-sales Service : 24/7 Technical Support

Contact Now

Pneumatic Cylindrical Battery Sealing Machine For Lab Cell Crimping

Ideal for both laboratory R&D and small‑batch factory production, this battery sealing machine is used for research sealing of cylindrical batteries and capacitors during sample preparation. Its pneumatic control ensures convenient, labor‑saving operation.

Product Features

Pure pneumatic operation requires no electricity, making it convenient and easy to use
Two-station sealing provides better sealing performance and effect
Precision mold design ensures accurate and reliable sealing formation, while the solid steel structure offers stable and safe operation
Additional features include attractive appearance, easy maintenance, compact size, convenient handling, and accurate molding results
The system is powered by compressed air or inert gas cylinders, with the exhaust from compressed air properly connected to prevent damage to the glove box atmosphere
A built-in function prevents short circuits during battery sealing

Product Parameters

Air source	0.6～0.8MPa argon, nitrogen gas cylinder, or compressed air (compressed air is not recommended in the glove box)
Exhaust design	Specially designed exhaust port, which can be connected externally through KF40 and other devices
Air consumption	About 480ml of air consumption for a single seal
Sealing pressure	Manual control valve control, pressure 1MPa, recommended pressure 0.7MPa
Sealing stroke	30mm
Dimensions	L290mmW205mmH330mm
Weight	27Kg
Sealing mold	Standard 18650 series packaging mold, optional or additional specifications
Structural material	High-strength chrome steel, the surface will never rust after environmental protection plating and spraying treatment

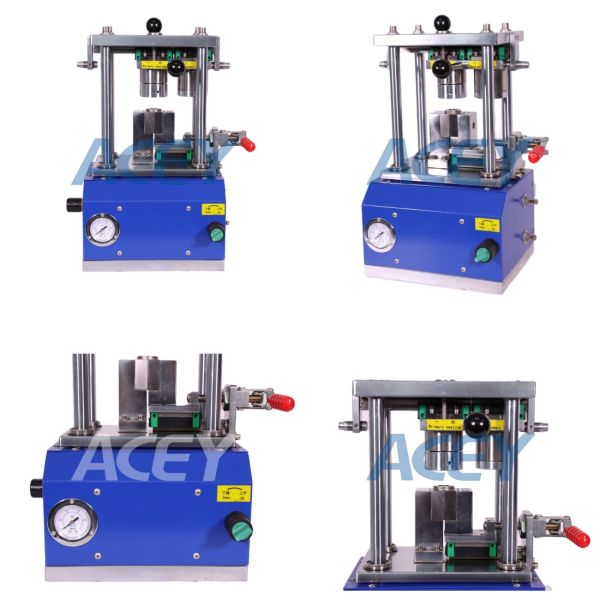

Product Display

Pneumatic Cylindrical Battery Sealing Machine For Lab Cell Crimping Images
