Semi-Auto Battery Electrode Winder for 18650 Cylindrical Lithium Battery Assembly

Name: SemiAuto Battery Electrode Winder for 18650 Cylindrical Lithium Battery Assembly
Brand: ACEY
Price: 14500 USD

Quality Semi-Auto Battery Electrode Winder for 18650 Cylindrical Lithium Battery Assembly for sale

Brand Name : ACEY

Model Number : ACEY-SWM-C

MOQ : 1 Set

Price : USD 14500~14800/Set

Payment Terms : T/T,PayPal,L/C,Western Union,MoneyGram

Supply Ability : 200 Sets/Month

Delivery Time : 7~35 Days

Diaphragm width : 30mm~60mm

Tape width : 8mm~16mm

Winding accuracy : ≤±0.3mm

Speed : 5~7 Pcs/min

Power source : AC220V 50HZ

Weight : About 600KG

Place of Origin : China

Warranty : 1 Year Warranty With Lifetime Support

Certification : CE

Packaging Details : Plywood Case

After-sales Service : 24/7 Technical Support

Contact Now

Semi-Auto Battery Electrode Winder for 18650 Cylindrical Lithium Battery Assembly

Product Overview

ACEY-SWM-C the semi-automatic cylindrical winding machine is specifically designed for the winding process of cylindrical lithium-ion battery pole pieces. Compared with manual winding equipment, it delivers significantly higher winding efficiency and improved alignment, along with greater flexibility in accommodating various battery dimensions. This makes it an ideal solution for diverse cylindrical battery winding requirements in lithium battery R&D laboratories.

Key Features

Suitable for semi-automatic dedicated production of cylindrical lithium-ion batteries
Automatic diaphragm release, automatic winding, automatic tape termination and automatic unloading
Diaphragm supplied with constant tension for consistent cell tension
Pole piece guide plate easily adjusts width to accommodate large range of pole pieces
User-friendly man-machine interface for simple and intuitive operation
Automatic alarm and fault location display for easy troubleshooting
Easy to learn operation for rapid productivity development

Technical Specifications

Needle diameter	Ф3mm, Ф4mm, Ф5mm (customizable according to customer requirements)
Positive and negative plates length	90mm~650mm
Positive and negative plates width	28mm~58mm
Diaphragm width	30mm~60mm
Tape width	8mm~16mm
Winding accuracy	≤±0.3mm (alignment error between diaphragm and positive/negative plates)
Speed	5~7 Pcs/min
Air source	0.5~0.7 Mpa
Power source	AC220V 50HZ, Power: 1.0KW
Equipment size	1600mm x 1300mm x 1500mm
Weight	Approximately 600KG

Product Display

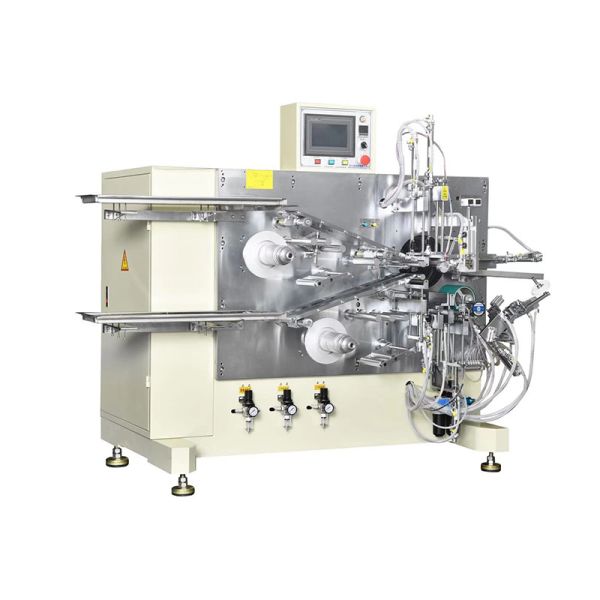

Semi-Auto Battery Electrode Winder for 18650 Cylindrical Lithium Battery Assembly

Semi-Auto Battery Electrode Winder for 18650 Cylindrical Lithium Battery Assembly Images
