5000A Double Sided Automatic Battery Spot Welding Machine For Lithium Ion Battery Pack

Name: 5000A Double Sided Automatic Battery Spot Welding Machine For Lithium Ion Battery Pack
Brand: ACEY
Price: 2160 USD

Quality 5000A Double Sided Automatic Battery Spot Welding Machine For Lithium Ion Battery Pack for sale

Model Number : ACEY-D300C

Power : 4000W

MOQ : 1 Set

Delivery Time : 7~35 Days

Dimensions : L1020mm*W910mm*H1770mm

Brand Name : ACEY

Machine weight : 350KG

Packaging Details : Plywood Case

Payment Terms : T/T,PayPal,L/C,Western Union

After-sales Service : 24/7 Technical Support

Repeat positioning accuracy : ±0.02mm

Certification : CE

Price : USD 2160-16980/Set

Y-axis travel : 500mm (customizable)

Supply Ability : 200 Sets/Month

Warranty : 1 Year Warranty With Lifetime Support

Z-axis travel : 400mm（Double） (customizable)

Place of Origin : China

Contact Now

5000A Double Sided Automatic Battery Spot Welding Machine For Lithium Ion Battery Pack

Product Description

ACEY-D300C Battery Spot Welding Machine is a double-sided automatic spot welder designed for multi-series and multi-parallel lithium battery pack assembly. It supports 14500, 18650, 21700, 26650 and 32700 cells and features 180° rotation, real-time welding current monitoring, automatic alarms and programmable welding processes.

Product Features

Double-Sided Automatic Welding: Supports automatic double-sided spot welding for cylindrical battery packs.
Wide Cell Compatibility: Designed for 14500, 18650, 21700, 26650 and 32700 battery cells.
Real-Time Current Monitoring: Built-in welding current monitor displays the welding current during operation.
Welding Fault Alarms: Provides cold solder joint, sealing-off and welding needle abrasion alarms.
Flexible Programming: Supports matrix, array and point programming with storage for up to 100 process groups.
High Positioning Accuracy: Stepper servo drive and precision screw guide system provide repeat positioning accuracy of ±0.02 mm.
High Welding Efficiency: Maximum welding speed is 0.35 s/point, with approximately 5,500 18650 cells/hour.
Production Line Integration: Can be matched with lithium battery pack production lines and supports stored processes for different battery pack products.

Main Technical Parameter

Y-axis travel	500mm (customizable)
Z-axis travel	400mm(Double) (customizable)
Max spot welding speed	0.35s/ point (1hour: about 5,500 18650 cells)
Motor drive speed	1000mm/S
Rotation Angle	180°
Max load battery cell	Y direction: 26; Z direction: 18
Capable file group storage	100 groups
Operating system	embedded system human-machine interface
Transmission mode	Taiwan precision screw with guide rail
Driving mode	stepper servo motor
Repeat positioning accuracy	±0.02mm
Dimensions	L1020mmW910mmH1770mm
Welding Current	5000A
Power	4000W
Machine weight	350KG
Max bearing weight of Y-axis	50KG
Input power supply	three-phase AC 380V/50Hz
Air Source	0.4-0.6 Mpa

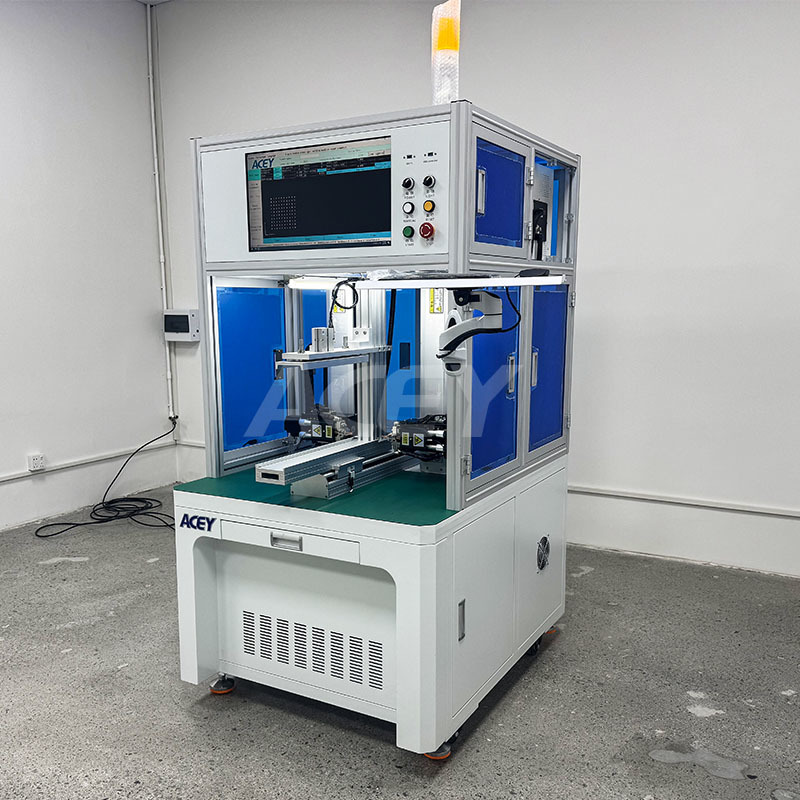

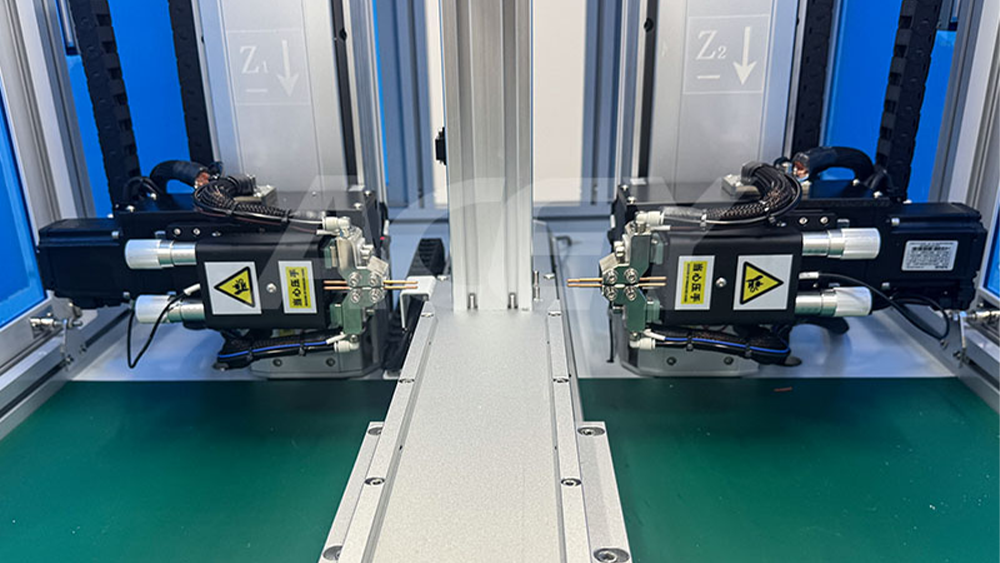

Product Display

5000A Double Sided Automatic Battery Spot Welding Machine For Lithium Ion Battery Pack

FAQ

1. How can manufacturers improve battery pack welding consistency?

ACEY-D300C Battery Spot Welding Machine uses servo-driven positioning with repeat positioning accuracy of ±0.02 mm and a built-in welding current monitor, helping operators monitor welding conditions and maintain consistent positioning during production.

2. How can manufacturers reduce cold welds and welding defects?

ACEY-D300C Battery Spot Welding Machine is equipped with cold solder joint and sealing-off alarms, as well as a welding needle abrasion alarm. The built-in current monitor also displays real-time welding current to help identify abnormal welding conditions.

3. How can battery pack manufacturers improve welding efficiency when changing products?

ACEY-D300C Battery Spot Welding Machine supports matrix, array and point programming and can store up to 100 groups of process parameters. Different battery pack processes can therefore be stored and recalled for product switching without resetting all parameters.
