High-Speed Automatic Double-Sided Battery Spot Welding Machine For Lithium Pack Manufacturing

Name: HighSpeed Automatic DoubleSided Battery Spot Welding Machine For Lithium Pack Manufacturing
Brand: ACEY
Price: 2160 USD

Quality High-Speed Automatic Double-Sided Battery Spot Welding Machine For Lithium Pack Manufacturing for sale

Brand Name : ACEY

Model Number : ACEY-D300B

Certification : CE

Place of Origin : China

MOQ : 1 Set

Price : USD 2160~12100/Set (negotiable)

Payment Terms : T/T,PayPal,L/C,Western Union,MoneyGram

Supply Ability : 200 Sets/Month

Delivery Time : 7~35 Days

Packaging Details : Plywood Case

Warranty : 1year

After-sales Service : 24/7 Technical Support

Y-axis Travel : 500 mm

Z-axis Travel : 400 mm

Welding Power Supply : 5000A/8000A/10000A

Machine Weight : 200 KG

Machine Dimensions : 1150mm (L) * 900mm (W) * 1850mm (H)

Contact Now

High-Speed Automatic Double-Sided Battery Spot Welding Machine For Lithium Pack Manufacturing

The ACEY-D300B is an automatic double-sided spot welding machine featuring an industrial modular control system with computer, motion controller, high-precision servo motors, and precision modules. This advanced configuration ensures exceptional accuracy, operational flexibility, and rapid performance. The system supports seamless AutoCAD welding data import with automatic electrode position deviation compensation, real-time production monitoring, and comprehensive defect detection.

Key Features

Oversized HD Control Hub: 21.5" touch-sensitive display provides comprehensive production metrics and system status overview
Smart Design Integration: Direct AutoCAD data synchronization enables complex welding path uploads without manual coding
Dynamic Pressure Control: Electric servo head applies soft-touch pressure to prevent cell deformation while increasing welding frequency
High-Volume Data Storage: Stores and recalls up to 999 unique project files for diverse battery pack geometries
Enhanced Durability: Premium imported core modules (Japan and Taiwan) maximize uptime and minimize maintenance
Adaptive Welding Modes: Supports single, double, and triple-point welding with customizable pitch settings
Safety & Quality Assurance: Instant alarms for welding anomalies ensure only defect-free packs leave the station
Zero-Damage Technology: Engineered to protect battery integrity through controlled, flexible pressure application

Technical Specifications

Specification	Value
Y-axis travel	500 mm
Z-axis travel	400 mm
Maximum spot welding speed	0.35 s/point; 5000 pcs/h (servo welding head)
Maximum motor drive speed	1000 mm/s
Maximum number of battery cells loaded	432 pcs (standard 18650 lithium-ion battery cells)
Number of storable program groups	999 groups
Operating system	Embedded motion control card + PC system
Transmission method	Servo motor + imported precision ball screw linear guide
Equipment power supply	Single-phase ~220V±10%/50Hz±10%
Equipment air pressure	0.3～0.4 Mpa
Equipment weight	200 KG
Dimensions	1150mm (L) * 900mm (W) * 1850mm (H)

Environmental Requirements

Ambient Temperature: -30°C to 50°C
Operating Humidity: ≤90% RH (non-condensing)
Pneumatic Supply: 0.4-0.6 MPa (Air pressure)
Power Supply: Single-phase 220V, 50Hz/60Hz
Floor Loading Capacity: ≤200 kg/m²
Earthing System: Direct grounding type
Site Environment: Must be free from pollution and strong electromagnetic interference
Installation Conditions: Level flooring, free from vibrations and mechanical impact
Noise Emission Level: ≤80 dB

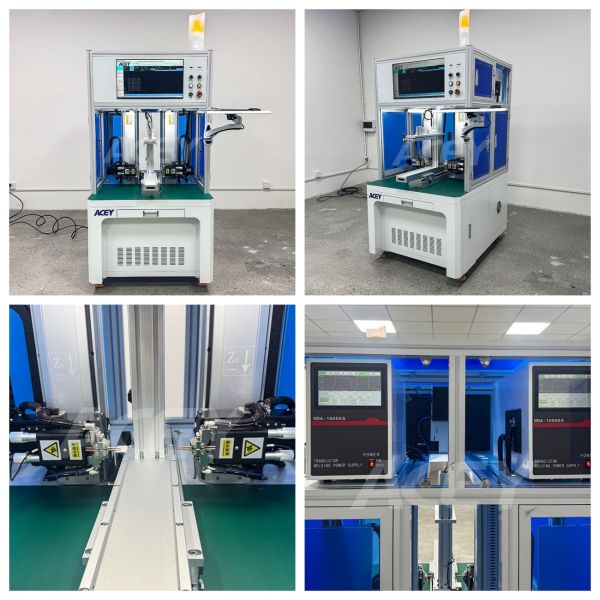

Product Display

High-Speed Automatic Double-Sided Battery Spot Welding Machine For Lithium Pack Manufacturing Images
