Automatic Lithium Battery Cell Sorting Machine For 32135 32140 33140 38121 40135 46140

Brand Name : ACEY

Model Number : ACEY-AS10SP-33140

Certification : CE

Place of Origin : China

MOQ : 1 Set

Price : USD 3180~8310/Set

Payment Terms : T/T,PayPal,L/C,Western Union,MoneyGram

Supply Ability : 200 Sets/Month

Delivery Time : 7~35 Days

Packaging Details : Plywood Case

Warranty : 1 Year Warranty with Lifetime Support

After-sales Service : 24/7 Technical Support

Number Of Channels : 10 Channels

Sorting speed : 50ppm

Compatible Battery : 32135/32140/33140/38121/40135/46140 Cylindrical Cells

Weight : 246kg

Contact Now

10 Channels Automatic Lithium Battery Cell Sorting Machine For 32135 32140 33140 38121 40135 46140


Product Description

ACEY-AS10SP-33140 is a 10-channel battery sorting machine developed for large cylindrical cells such as 32, 33, 40, and 46 series. It uses a computer-based control system combined with precision servo motors and internal resistance testing instruments to achieve stable and accurate sorting performance. Compared with conventional PLC control systems, it allows easier parameter adjustment, faster product changeover, and more convenient production data management, helping improve efficiency and consistency in battery pack production.


Product Features

  • High Efficiency: Capable of processing approximately 3,200 cylindrical cells per hour.
  • Robust Design: Minimalist and elegant mechanical structure with stable system performance.
  • Versatile Application: Specifically designed for power batteries, 3C digital batteries, and energy storage, meeting the precise matching requirements for new energy battery packs while complying with international safety standards.
  • Smart Connectivity: Supports MES system integration for seamless data collection and uploading.
  • Customizable Options: Supports QR code, barcode, and side-scanning functions (optional), with compatibility for various brands and models of internal resistance testers.


Technical Specifications

Item Specification
Applicable Cell Models 32135, 33140, 38121, 40135, 46140, etc. (Standard set includes one sorting wheel; others are optional).
Changeover Time Approx. 15 minutes.
Build Quality Compact design using high-grade cold-rolled sheet metal and aluminum alloy.
Mobility Equipped with universal casters for easy relocation.
Operational Modes Can be used as a standalone unit (Sticker/Sorting) or integrated into an automated line.
Scanning (Optional) Supports QR codes, barcodes, and side-surface scanning.
Total Power ≤ 1.5 kW
Dimensions L 2331mm * W 1055mm * H 1300mm
Weight 246 KG
Equipment Color Computer White (Customizable upon request).


Environmental & Installation Requirements

  • Ambient Temperature: -30°C to 50°C
  • Humidity: Below 90%
  • Air Supply Pressure: 0.5 – 0.6 MPa
  • Power Supply: 220V, 50Hz/60Hz
  • Floor Loading Capacity: ≤ 200 kg/m²
  • Grounding: Direct grounding
  • Site Requirements: Free from pollution and strong electromagnetic interference.
  • Installation Surface: Level ground, free from vibration and impact.
  • Noise Level: ≤ 80 dB

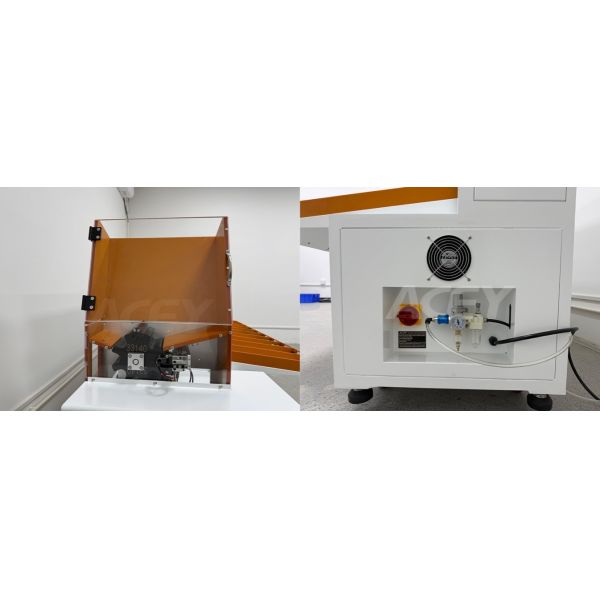

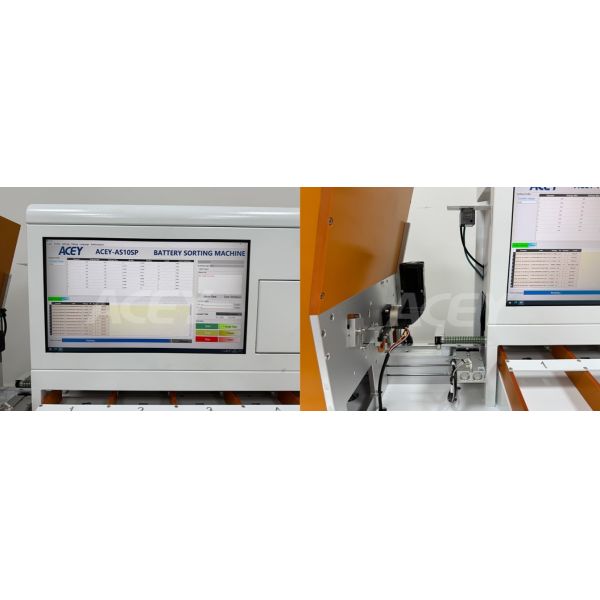

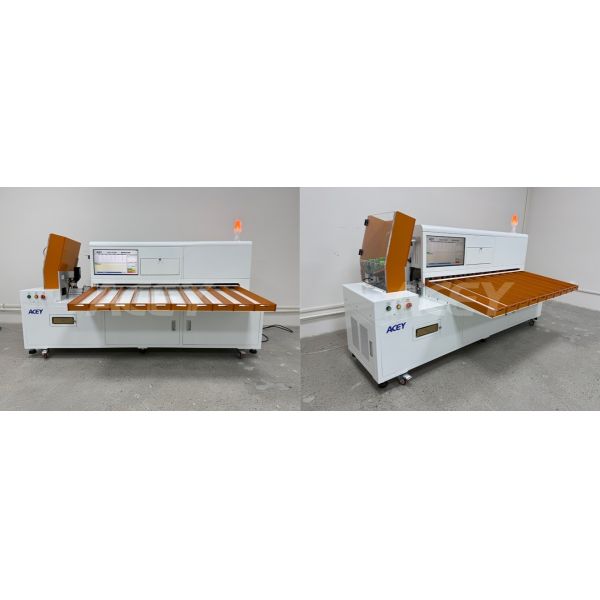

Product Display

Automatic Lithium Battery Cell Sorting Machine For 32135 32140 33140 38121 40135 46140

Automatic Lithium Battery Cell Sorting Machine For 32135 32140 33140 38121 40135 46140

Automatic Lithium Battery Cell Sorting Machine For 32135 32140 33140 38121 40135 46140
